Why is the thermal camera solution ?

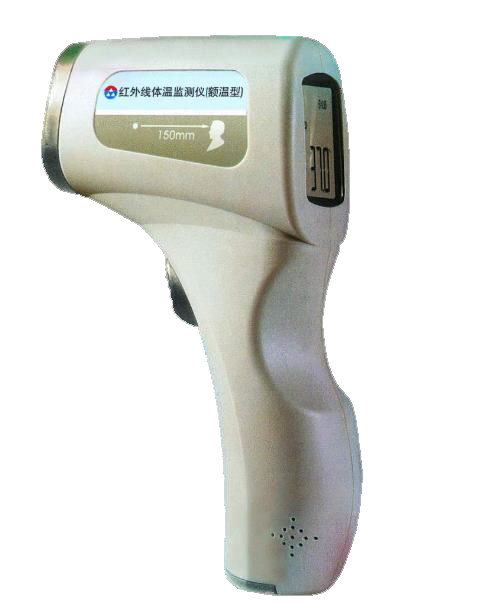

Forehead Thermometer

  • Distance :10-20 cm
  • Speed : 1-5 seconds
  • Display: Numeric only
  • Efficiency: 12 persons / minute
  • Information preservation: No preserve

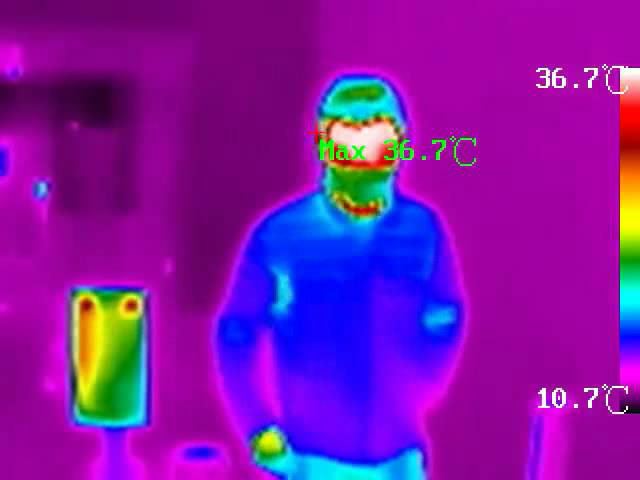

What is thermal camera ?

Principle

Any object with temperature above absolute zero emits a detectable amount of radiations. Thermal camera converts IR radiations into gray value, and establishes the accurate corresponding relation between gray value and temperature through the temperature measurement algorithm model. The model (Temperature Gray Level Curve) is obtained by black body calibration.

Application

Any object with temperature above absolute zero emits a detectable amount of radiations. Thermal camera converts IR radiations into gray value, and establishes the accurate corresponding relation between gray value and temperature through the temperature measurement algorithm model. The model (Temperature Gray Level Curve) is obtained by black body calibration.

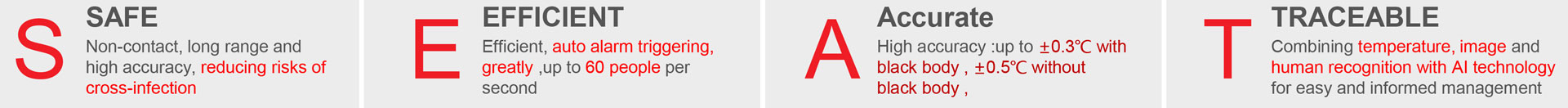

Advantages

  • High Efficiency: It takes only one second that thermal camera can detect temperature of each person. Thus, no congestion will be made when passing through the site where temperature needs to check.
  • Safety: Thermal camera supports non contact temperature measurement which can achieve accurately measuring temperature around 1 meter away. That reduces the risk of infection coming from physical contact.

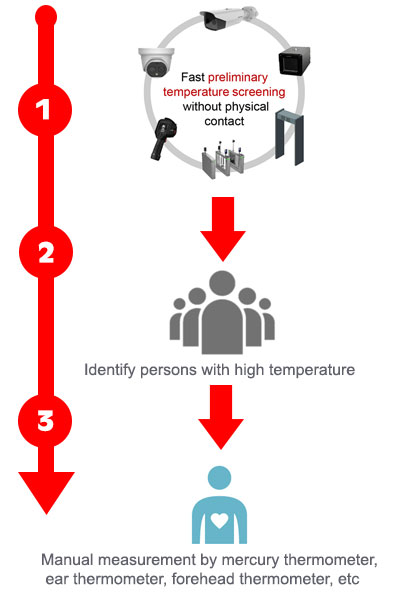

Temperature Screening Process and Typical Application Scenarios

Long term temperature screening for crowds in open areas

Short term temperature screening at entrances

Hand held temperature screening by patrolling inspectors

Duo protection temperature screening with access control

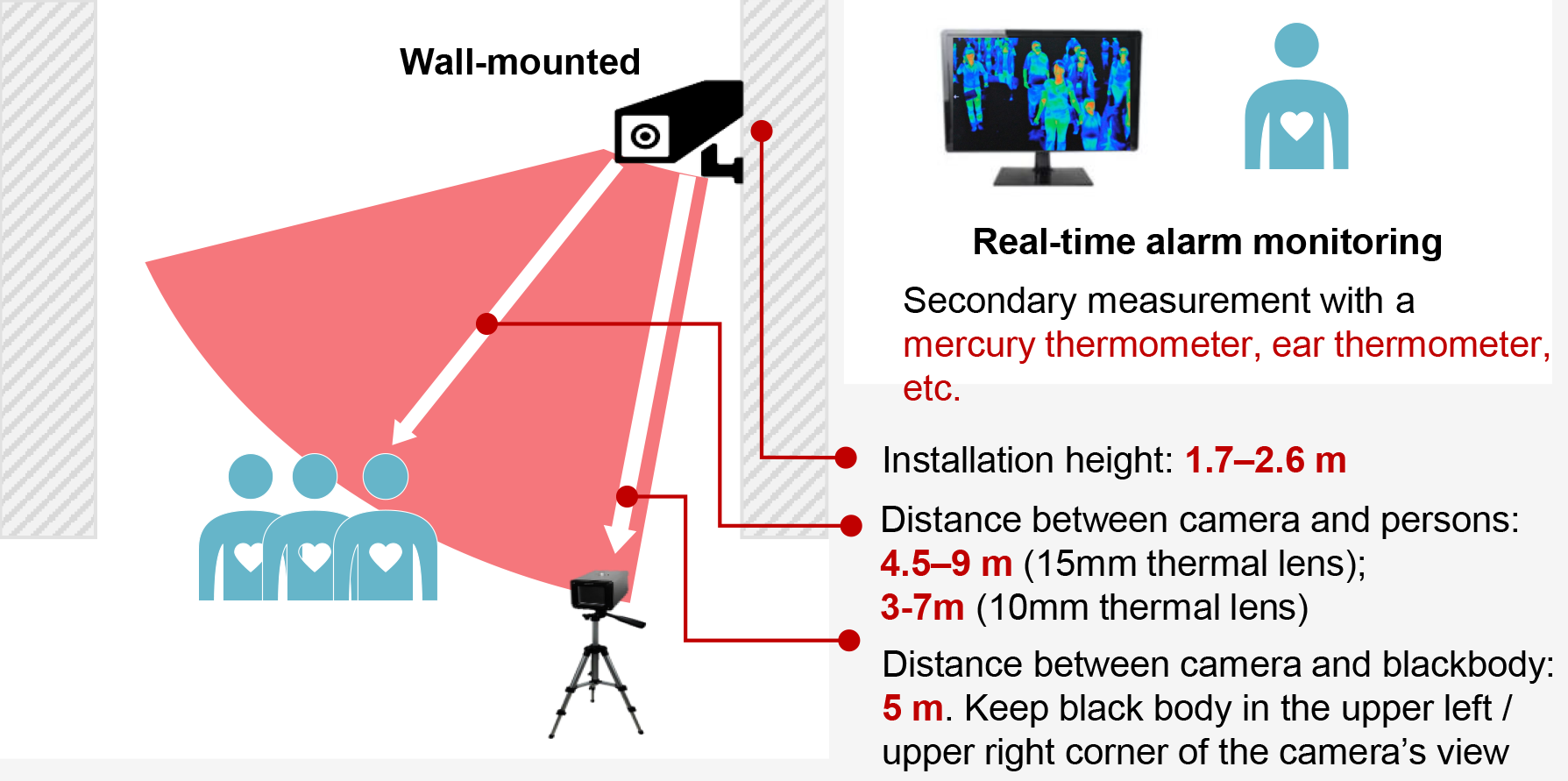

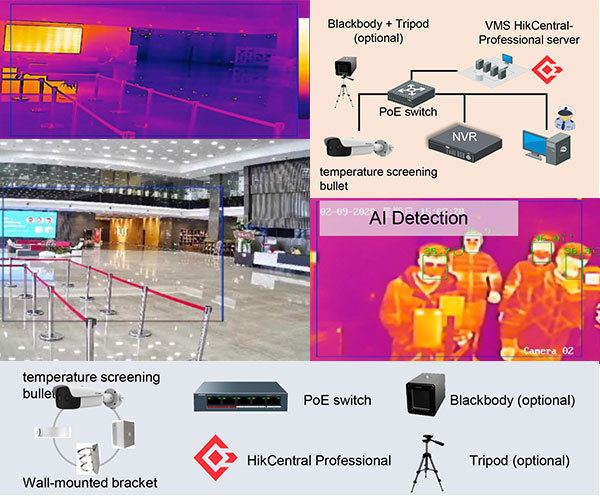

Long-term Temperature Screening for Crowds in Open Areas

Group Temperature Screening(up to 9meter for the detection )

Solution Details

  • For long-term preliminary temperature screening of crowds with high efficiency (indoor), simultaneous temperature screening for multiple persons (Up to 30 persons)
  • The blackbody is used as a calibrator to improve the accuracy to ±0.3℃
  • Centralized management of access control with

Product Information

  • Thermal: 384 × 288, lens: 10/15 mm
  • Optical: 2688 × 1520, lens: 4/6 mm
  • Simultaneous temperature screening for multiple persons (up to 30 persons)
  • Accuracy: ±0.5℃
  • Measurement range: 30-45℃
  • Working temperature: 10-35℃
  • AI detection reduce the false alarms of temperature screening

DS-2TD2636B-15/P
DS-2TD2637B-10/P

Application Scenarios ( open area)

Note: Indoor installation recommended. The fluctuation in outdoor ambient temperatures influences the accuracy of temperature measu re ment.

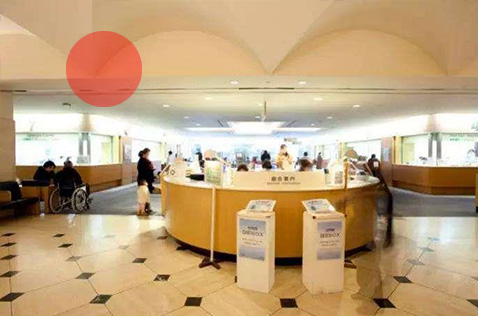

Hospital

The nurse station or information desk is the place where the potential patients will consult and gather. So the fast preliminary temperature screening is quite needed here.

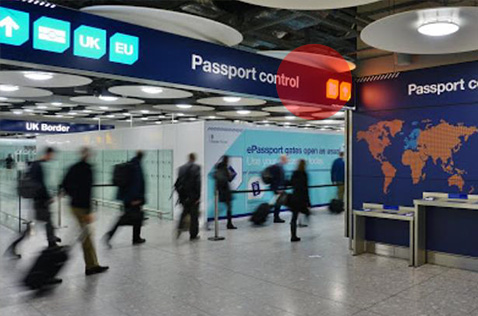

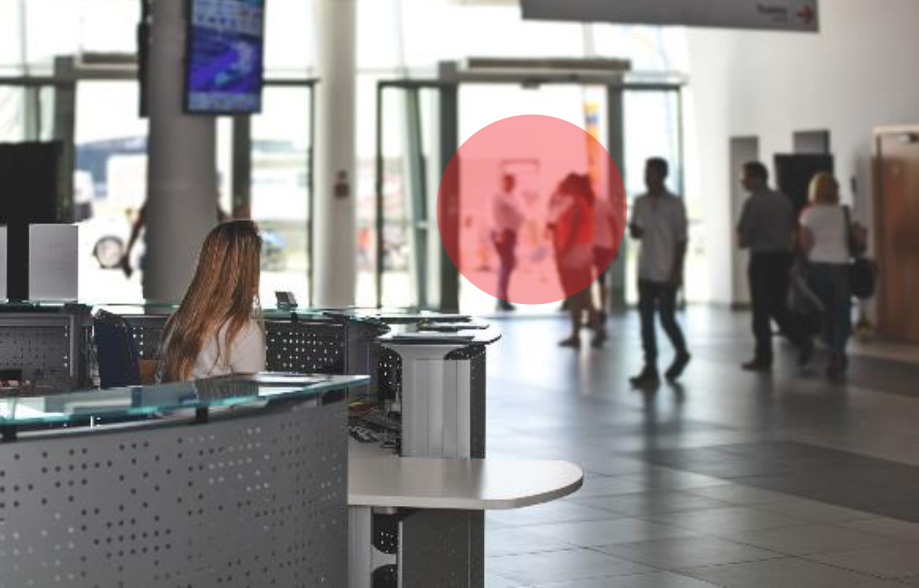

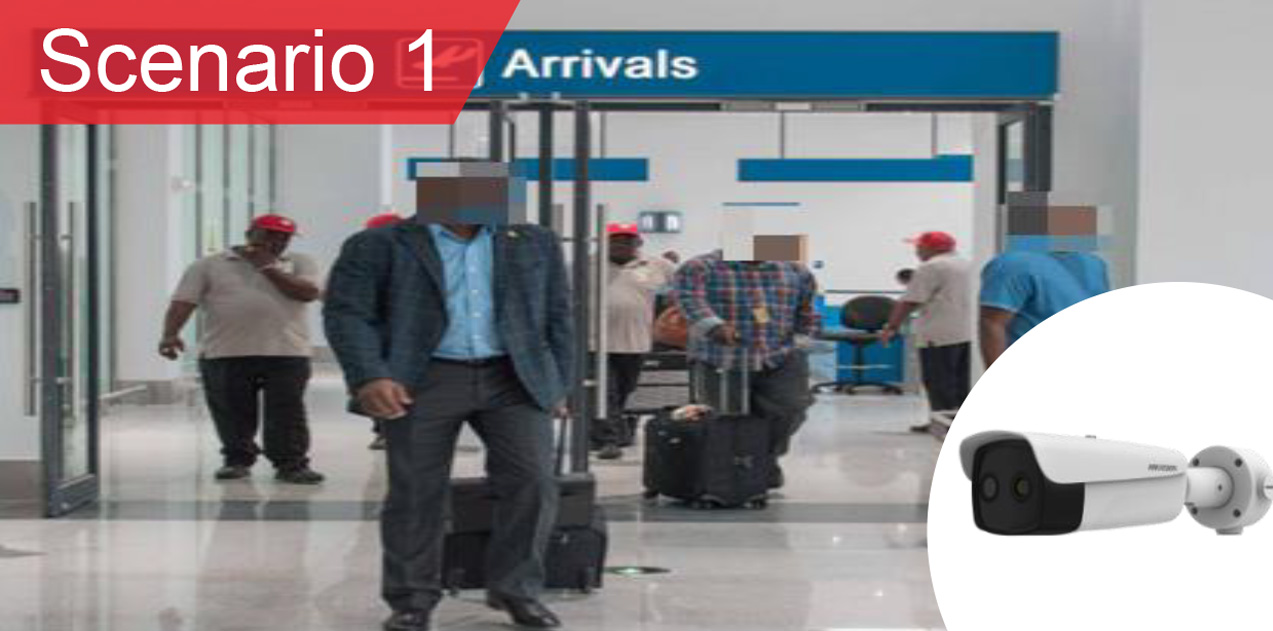

Airport Transport Station

The passenger channels at the airport or other transport stations are the important locations where passengers arrive and need the fast preliminary temperature screening

Office Building

Corridors of buildings are the regular areas where most of the employees pass through. This location can be a daily internal screening point.

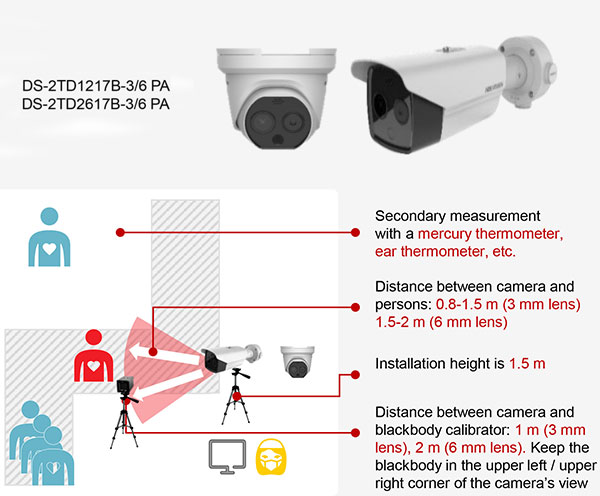

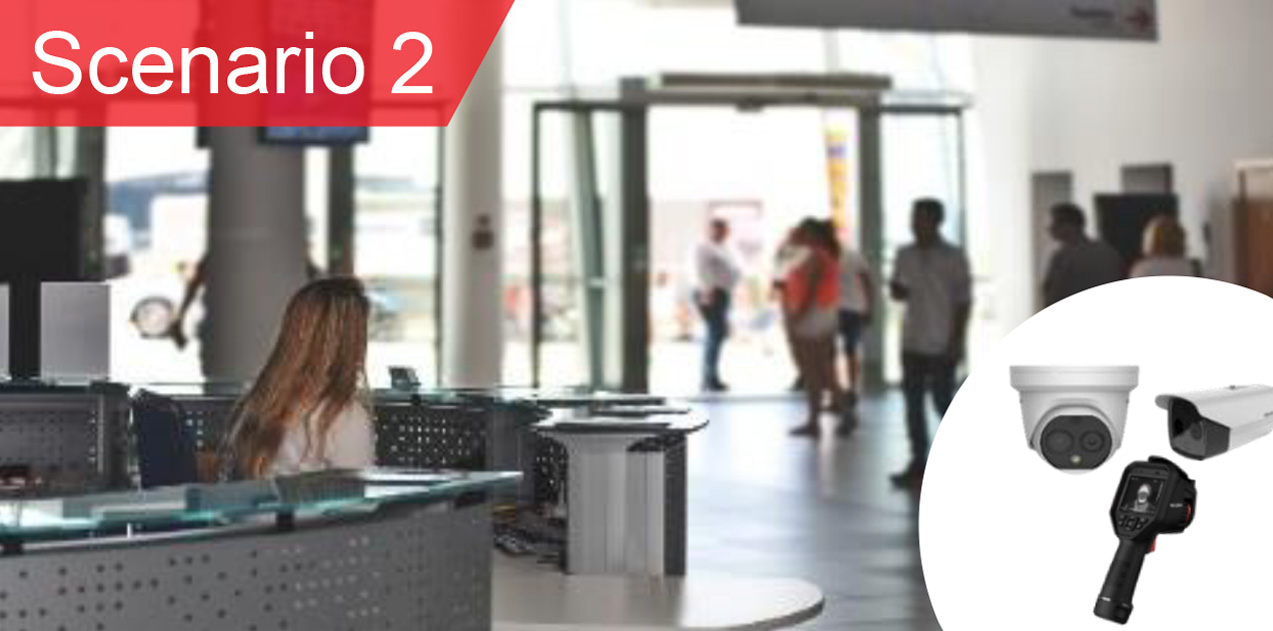

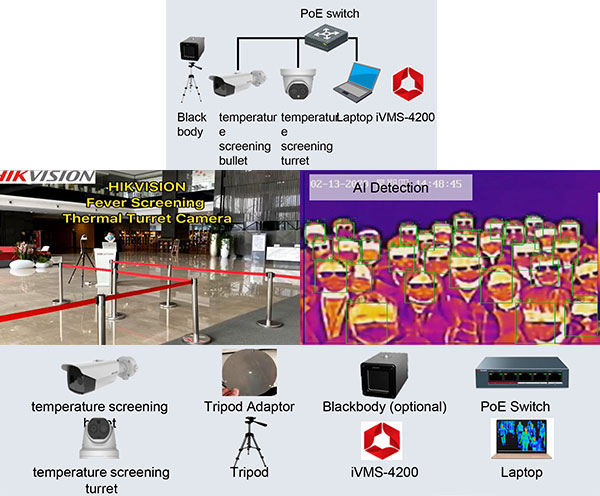

Short term temperature Screening at Entrances Bullet/Turret C amera

up to 2meter for the detection

Solution Details

  • For building entrances, elevator halls, airport security checks, etc.
  • Indoor space without wind
  • Recommend to set up a route to guide the flow
  • Recommend to do temperature screening 5 min after a person enters the indoor space
  • Use the blackbodyas a calibrator for screening to improve theimprove the accuracy to 0.3

Product Information

  • Thermal: 160 × 120, l ens : 3 mm / 6 mm
  • Optical: 2688 × 1520, lens : 4 mm / 8 mm
  • Accuracy: ±0.5℃ (±0.3℃ with blackbody)
  • Measurement range: 30-45℃
  • Working temperature: 10-35℃
  • Embedded audio alarm for abnormal temperatures
  • AI detection increases the precision of temperature screening

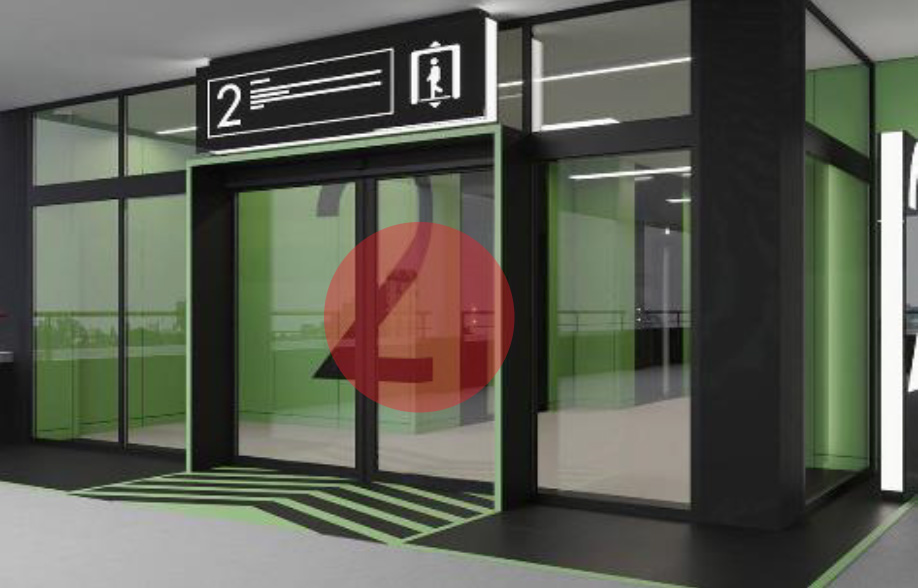

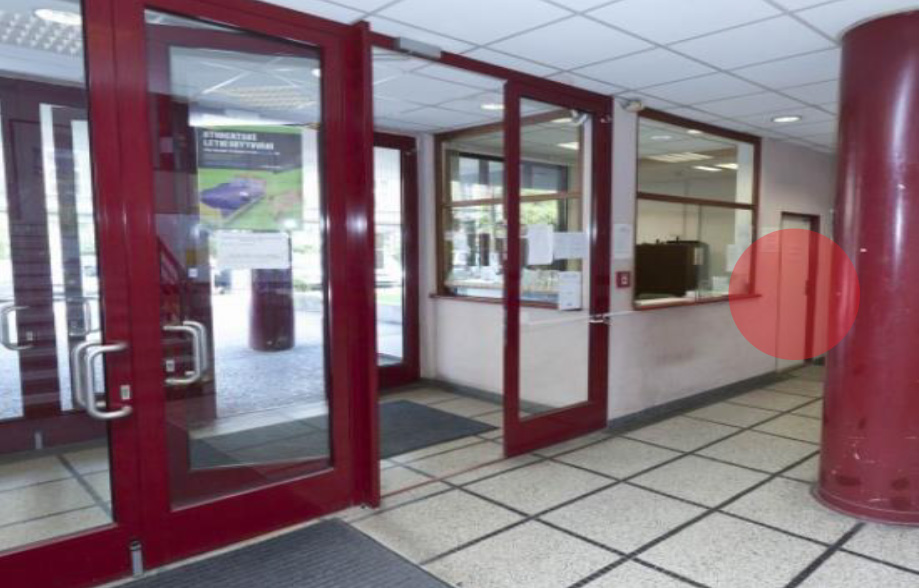

Application Scenarios (Entrance)

Note: Indoor installation recommended. The fluctuation in outdoor ambient temperatures influences the accuracy of temperature measurement.

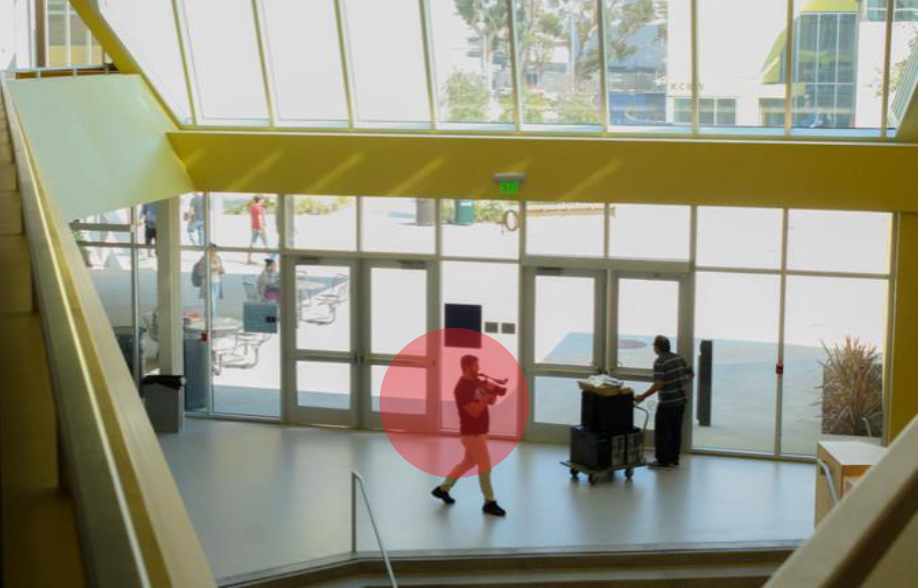

School

Entrance of college building
Entrance of dormitory

Retail

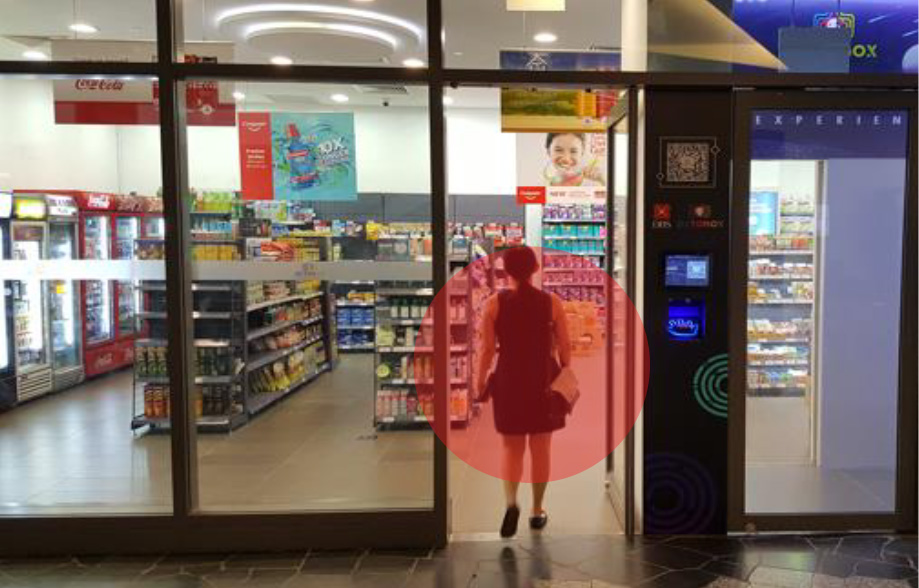

Entrance of supermarket

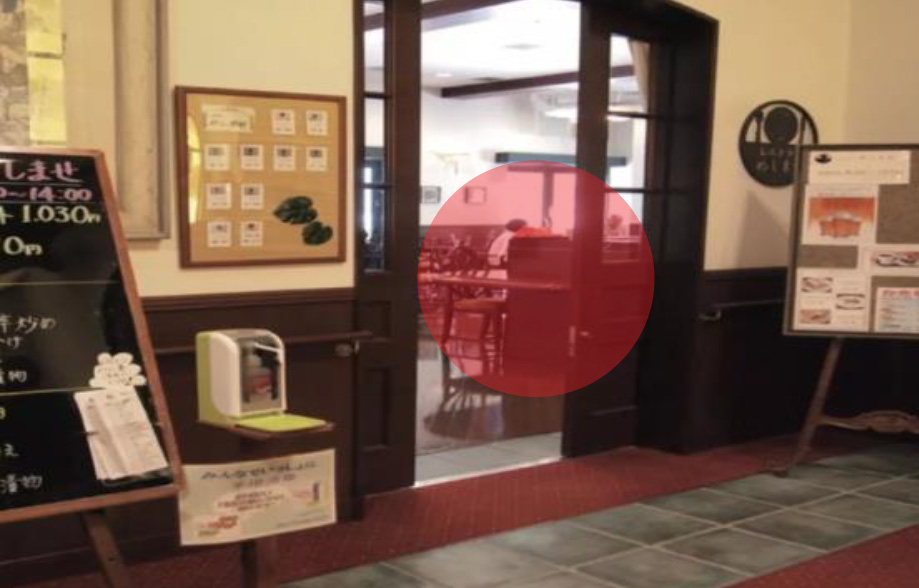

Entrance of restaurant

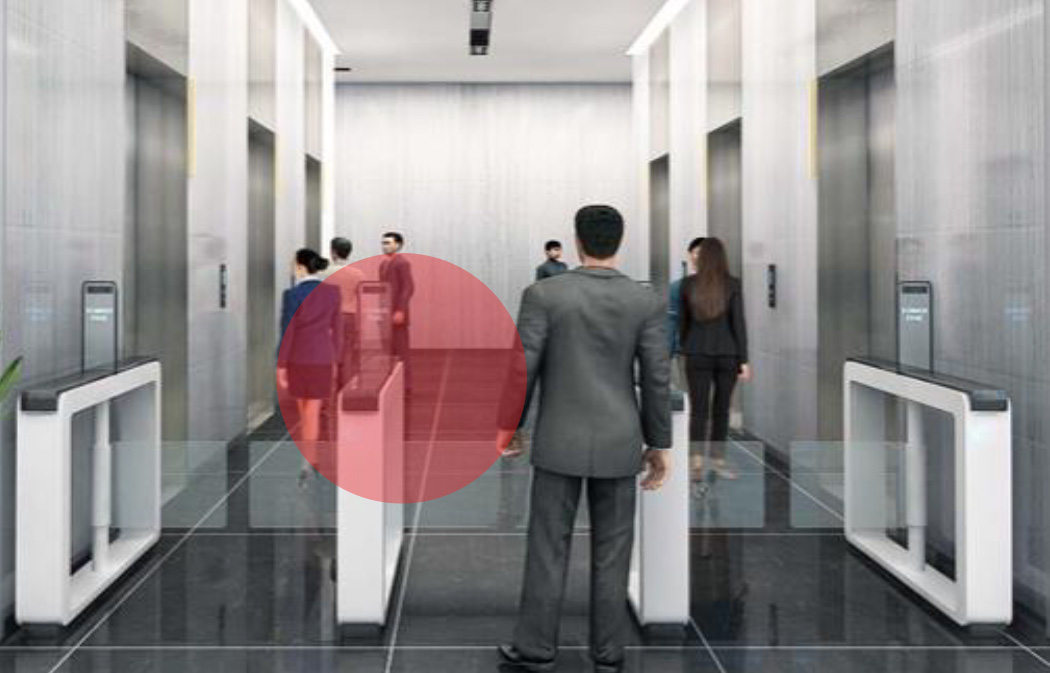

Office Building

Elevator hall of parking lot
Entrance of office building

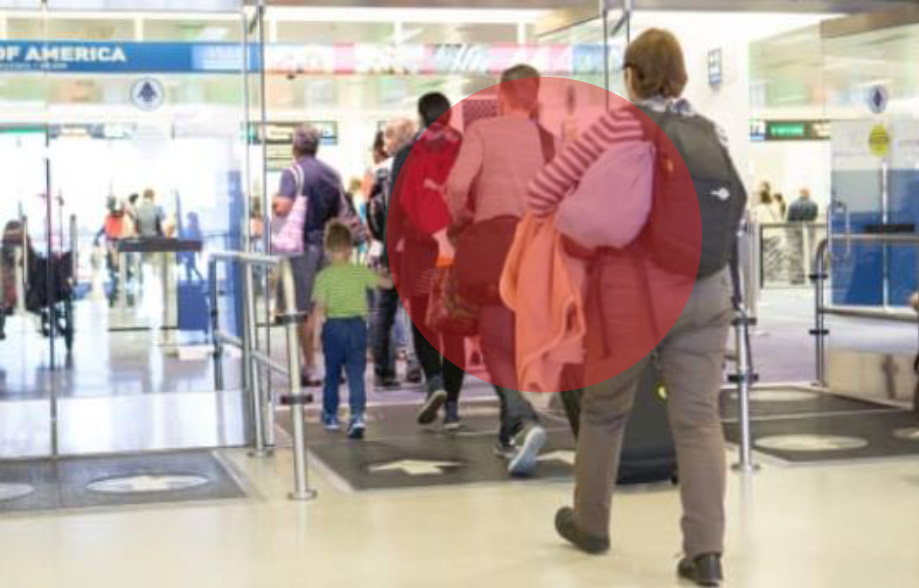

Airport

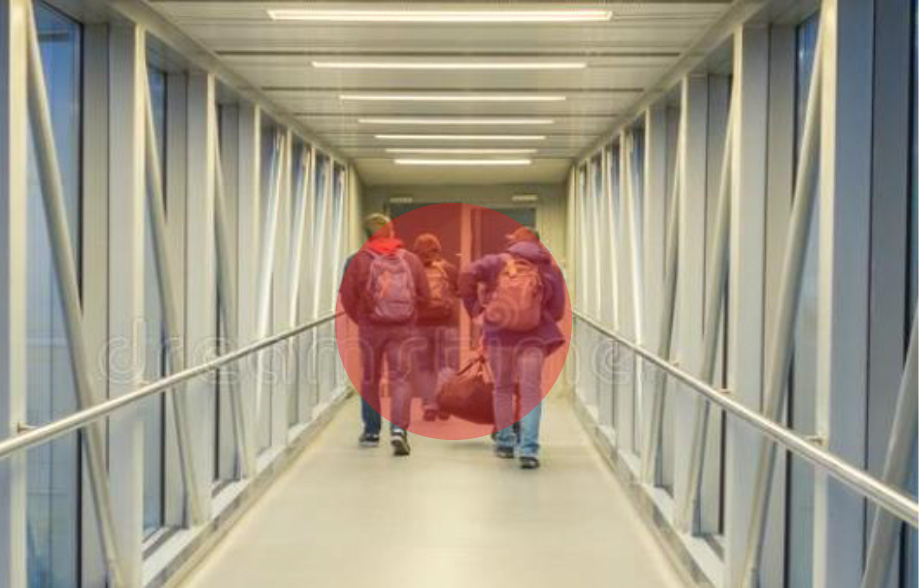

Jet bridge for departure & arrival flight
Entrance of terminal

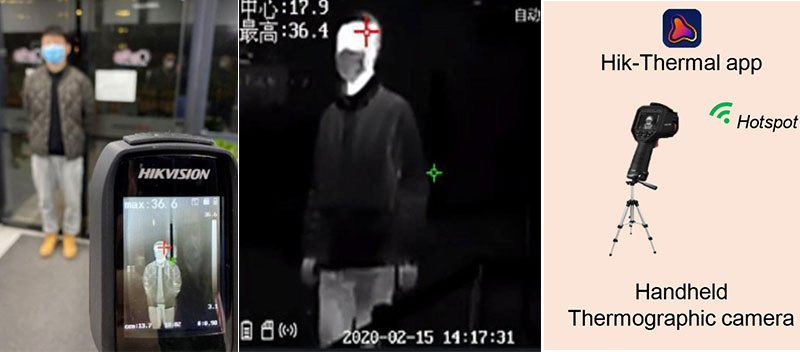

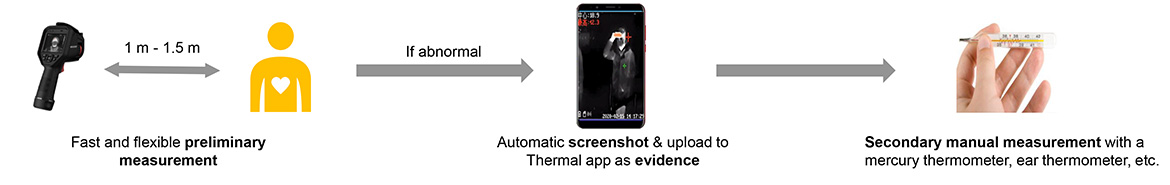

Hand held temperature Screening by Patrolling Inspectors

Anytime, Anywhere, Just One Click

Solution Details

  • For preliminary temperature screening by spot checking inspectors ( indoor
  • temperature screening without disturbing a person occupied with work

Product Information

  • Thermal resolution: 160 × 120;
  • Optical resolution: 640 × 480;
  • Accuracy: ±0.5℃
  • Measurement range: 30-45℃
  • 3.5” LCD touch screen
  • Supports Wi Fi hotspot , automatic screenshots of a person with a temperature & uploading to the Mobile Client ( Hik Thermal) as evidence
  • Supports real timeaudio alarm
  • Operation time: 4 5 hours

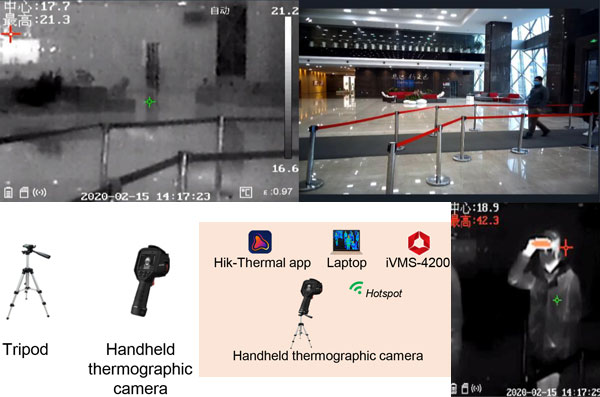

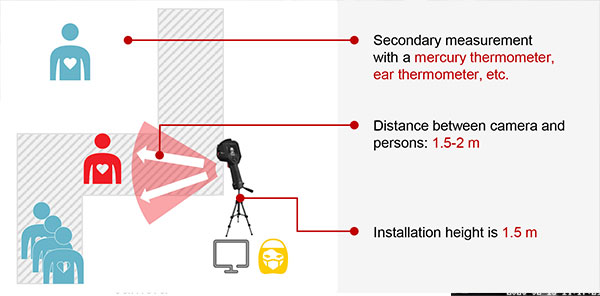

Short term temperature Screening at Entrances-Handheld Camera

Wireless, Flexible, Fast Deployment

Solution Details

  • For building entrances, elevator halls, airport security checks, etc.
  • Wireless deployment without cables (by the app or the iVMS 4200 client)
  • Indoor space without wind
  • Recommend to set up a route to guide the flow
  • Recommend to do temperature screening 5 min after a person enters the indoor space

Product Information

  • Thermal resolution: 160 × 120;
  • Optical resolution: 640 × 480;
  • Accuracy: ±0.5℃
  • Measurement range: 30-45℃
  • 3.5” LCD touch screen
  • Supports Wi Fi hotspot , , able to live view on PC or m obile client, relieves eye fatigue
  • Supports real time audio alarm and automatic uploading of screen captures

Application Scenarios

Note: Indoor installation recommended. The fluctuation in outdoor ambient temperatures influences the accuracy of temperature measu re ment.

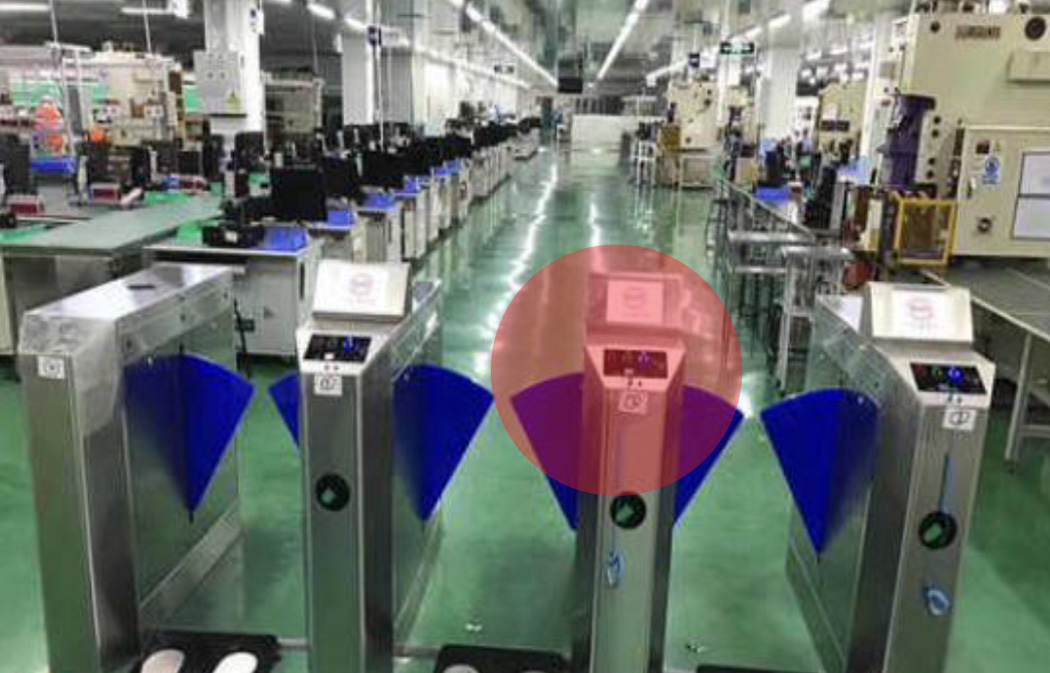

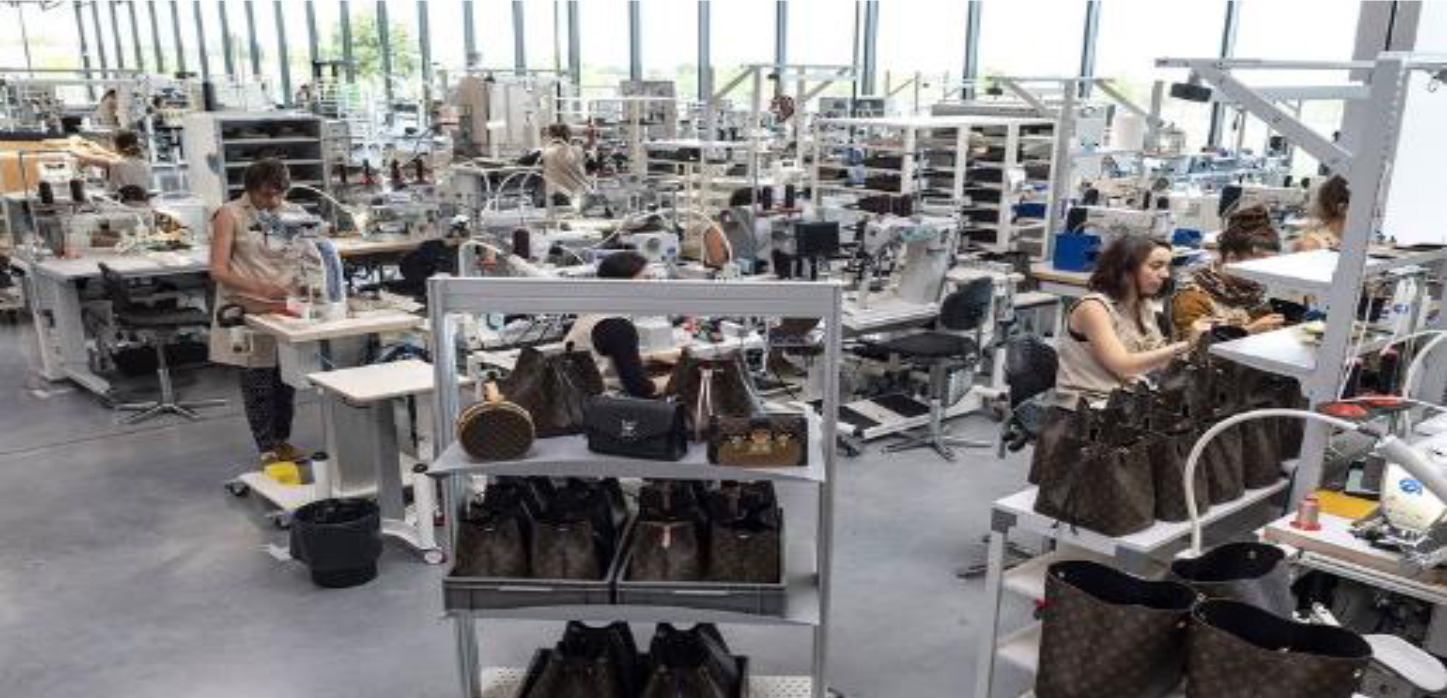

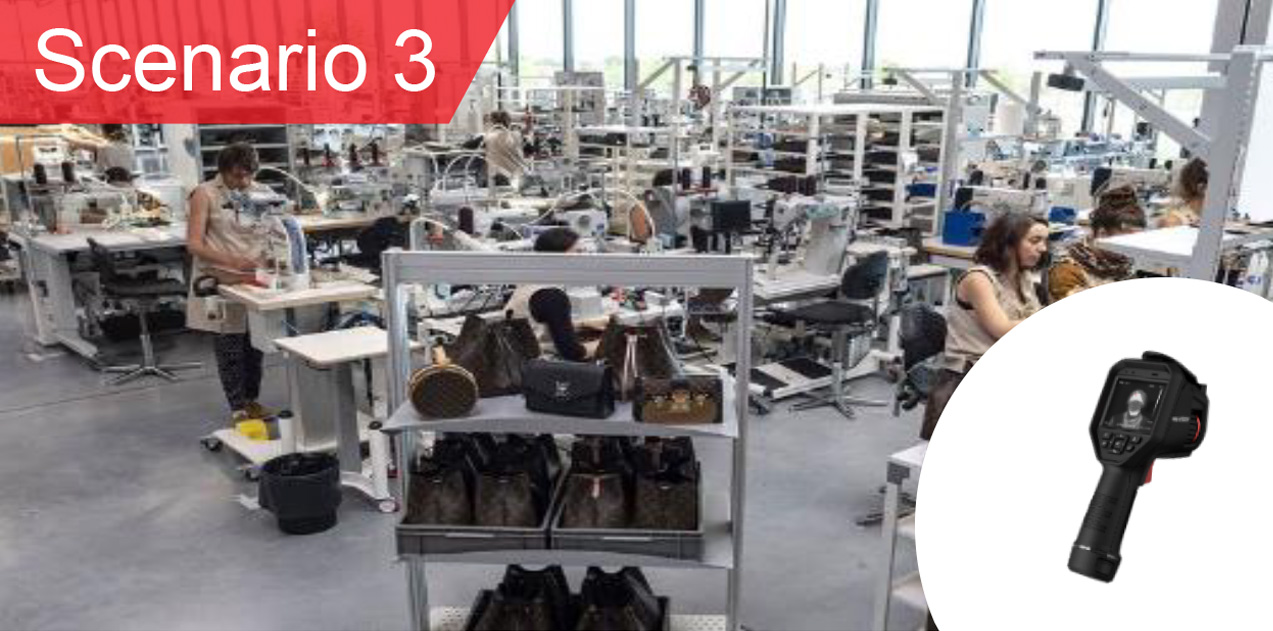

Factory

Workshop

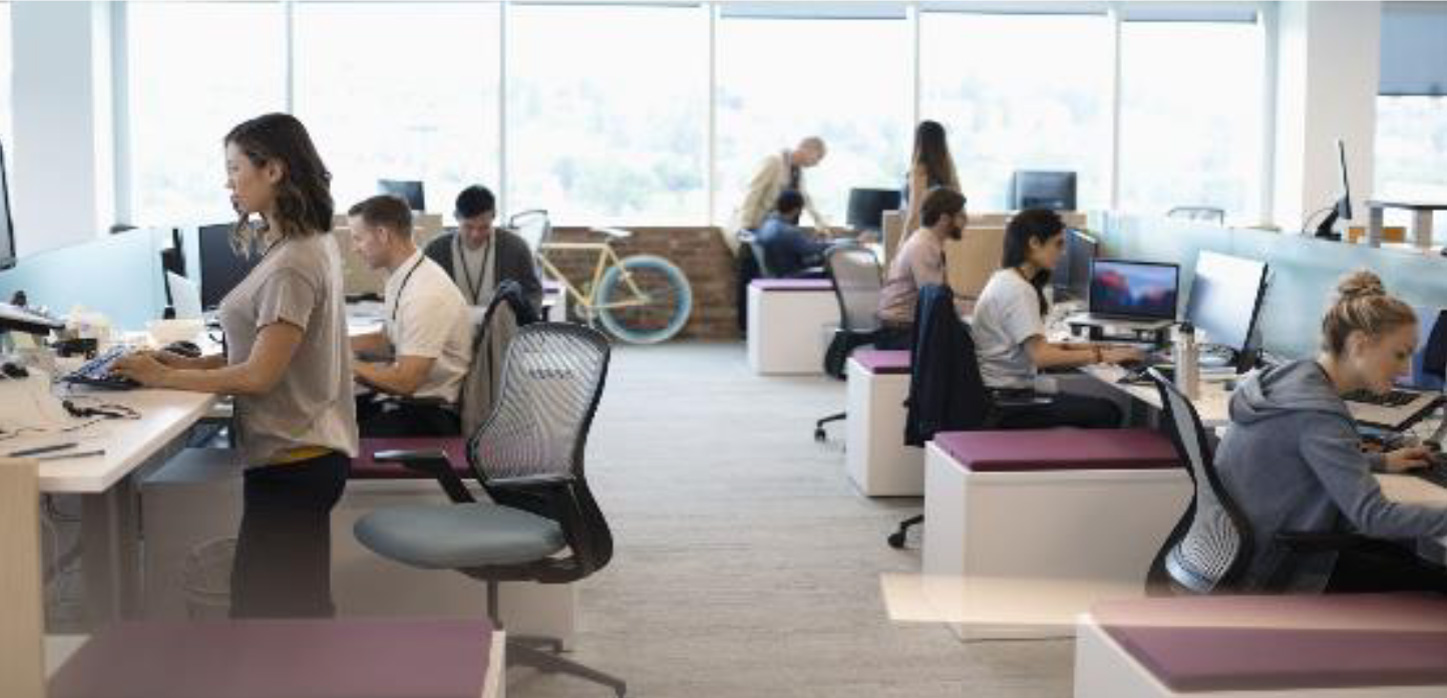

Office Building

Office area

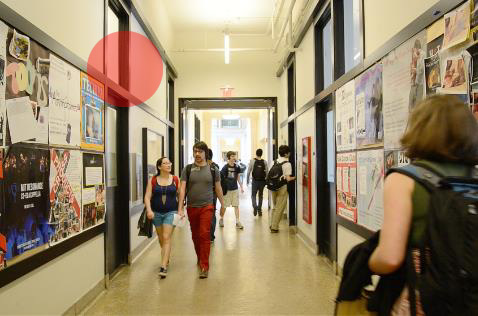

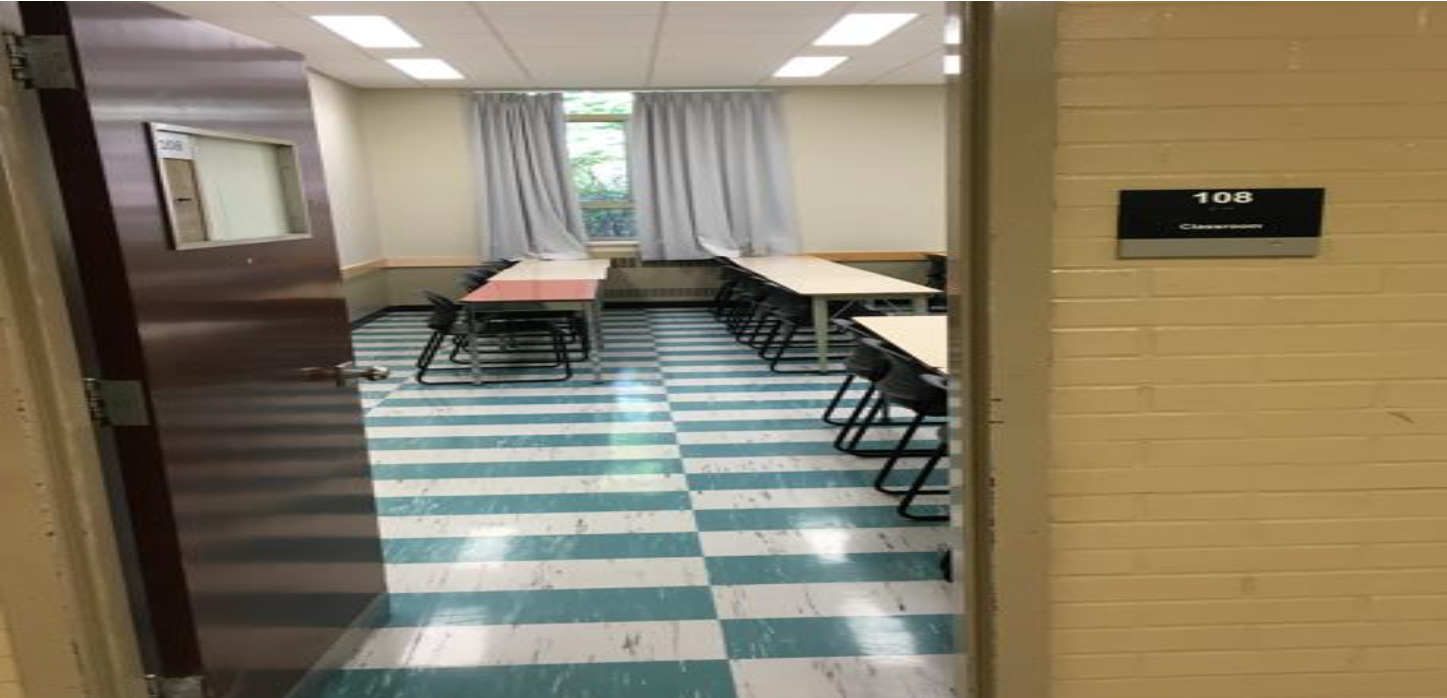

School

Entrance of classroom

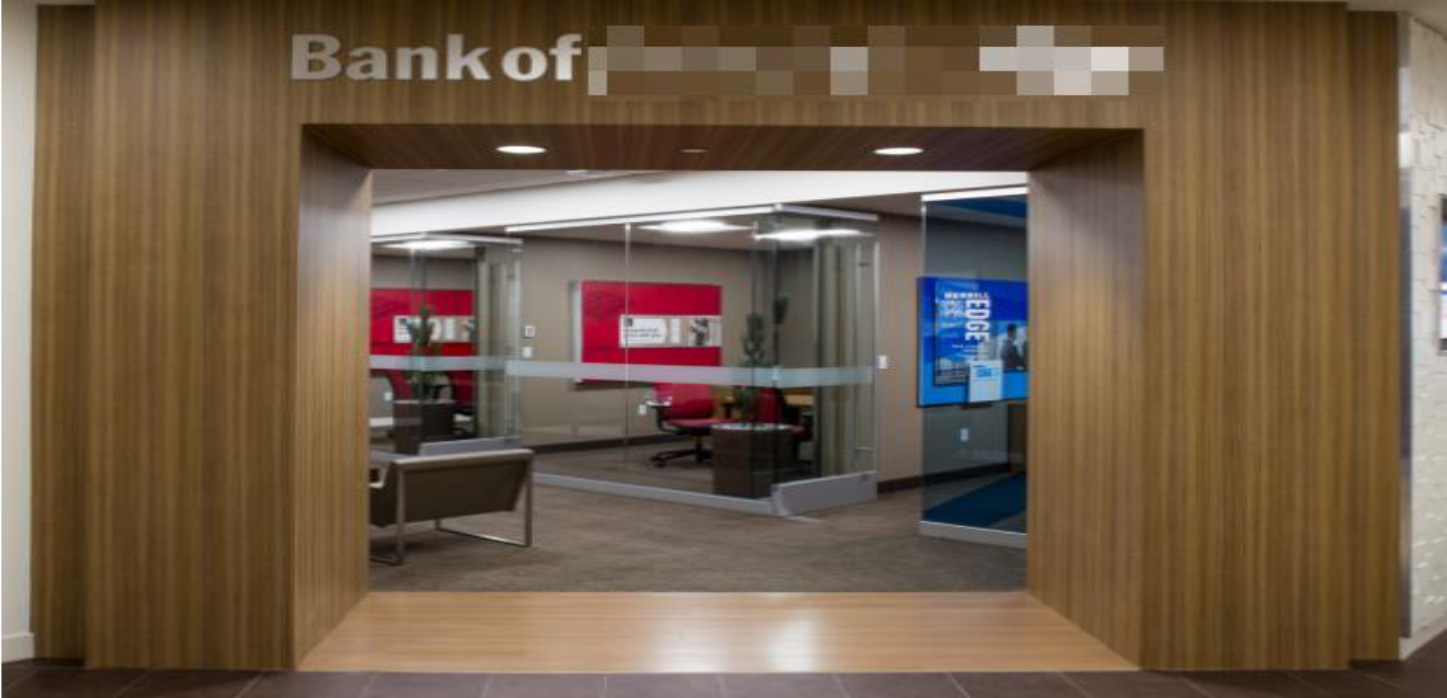

Bank

Entrance of branch

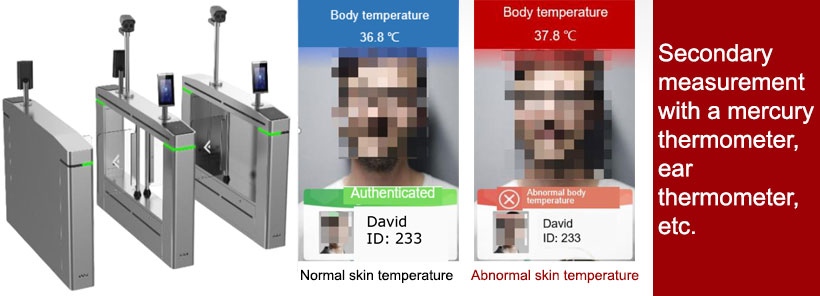

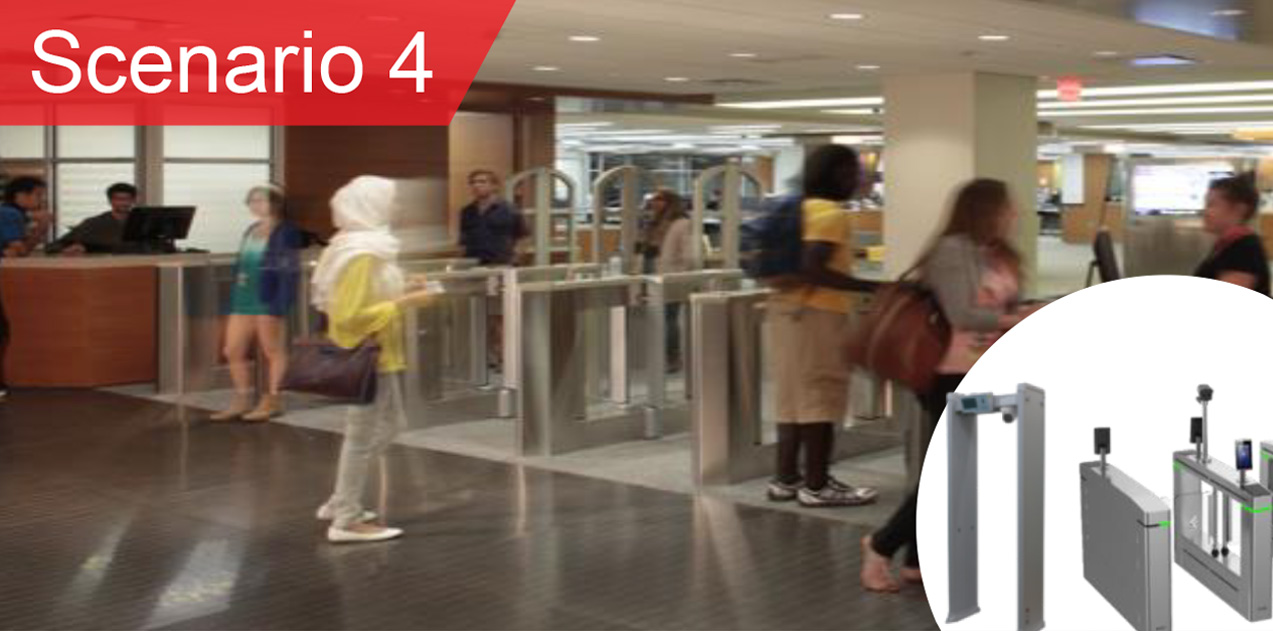

Duo Protection without Touch

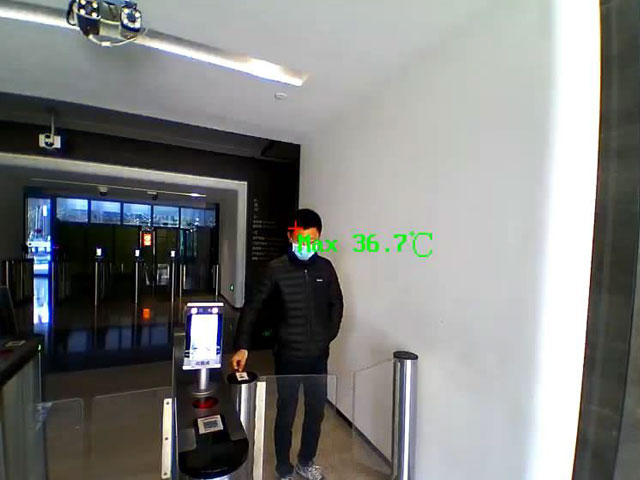

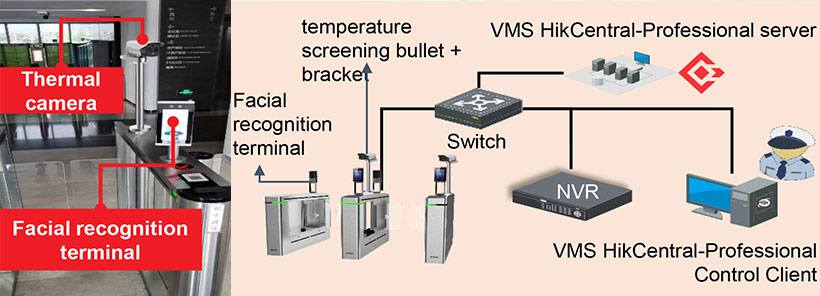

Temperature Screening With Access Control

Solution Details

  • Long-term temperature screening with access control for building related projects
  • Indoor space
  • Recommend to do temperature screening 5 min aftera person enters the indoor space
  • Centralized managementof access control with temperature records

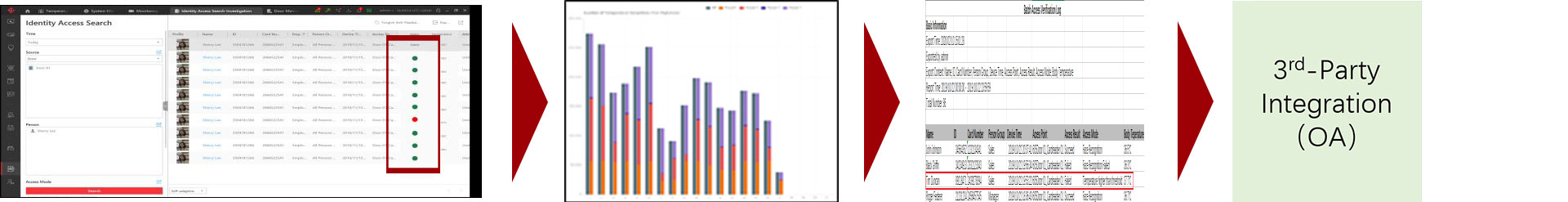

VMS centralized management of the access control system

  • Access record with temperature statistics, and can be exported as reports
  • Real-time temperature alarm handling and tracing back
  • Open ability of access record with temperature information (Open API)

Product Information

  • Face recognition & skin-surface temperature measurement
  • Non-contact fast skin temperature measurement (face detection)
  • All in one, fast to deploy
  • Voice reminder to broadcast real-time alarms
  • Face capacity: 20,000
  • Passing speed: up to 60 persons/min
  • Measurement range: 30-45℃
  • Accuracy: ±0.5℃

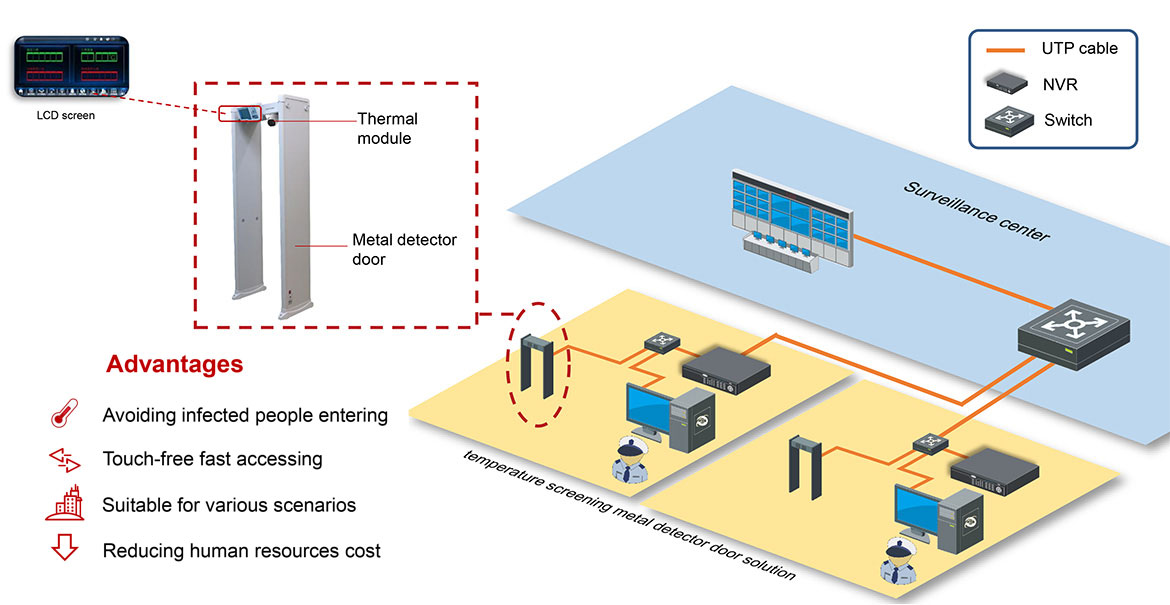

Duo Protection without Touch

Temperature Screening With Metal Detector Door

Application Scenarios

Note: Indoor installation recommended. The fluctuation in outdoor ambient temperatures influences the accuracy of temperature measu re ment.

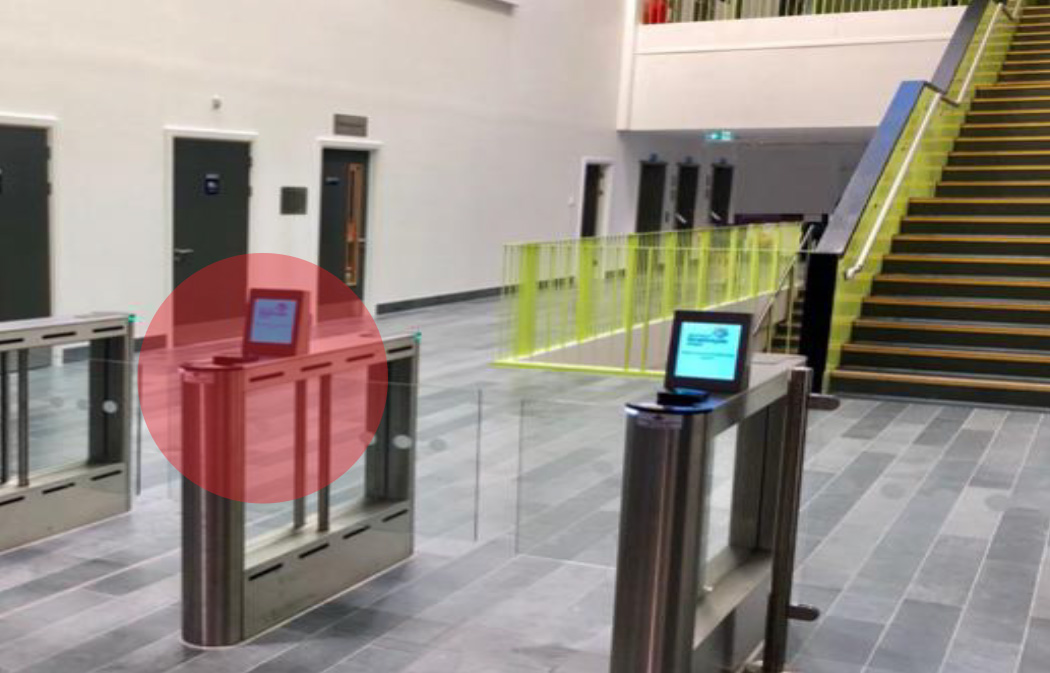

School

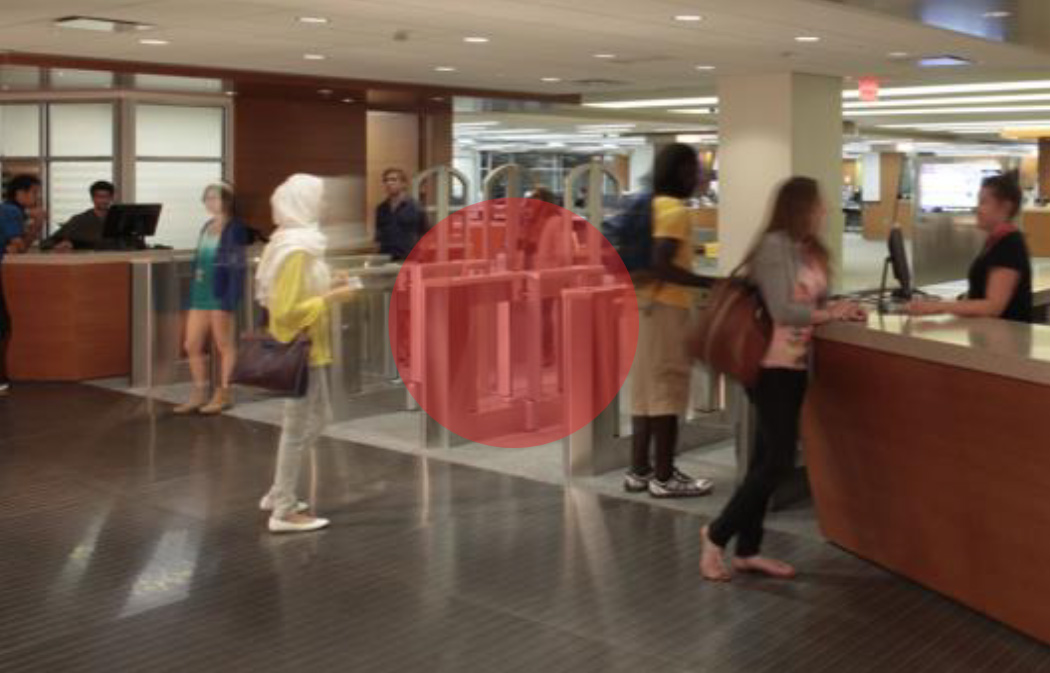

Entrance of library

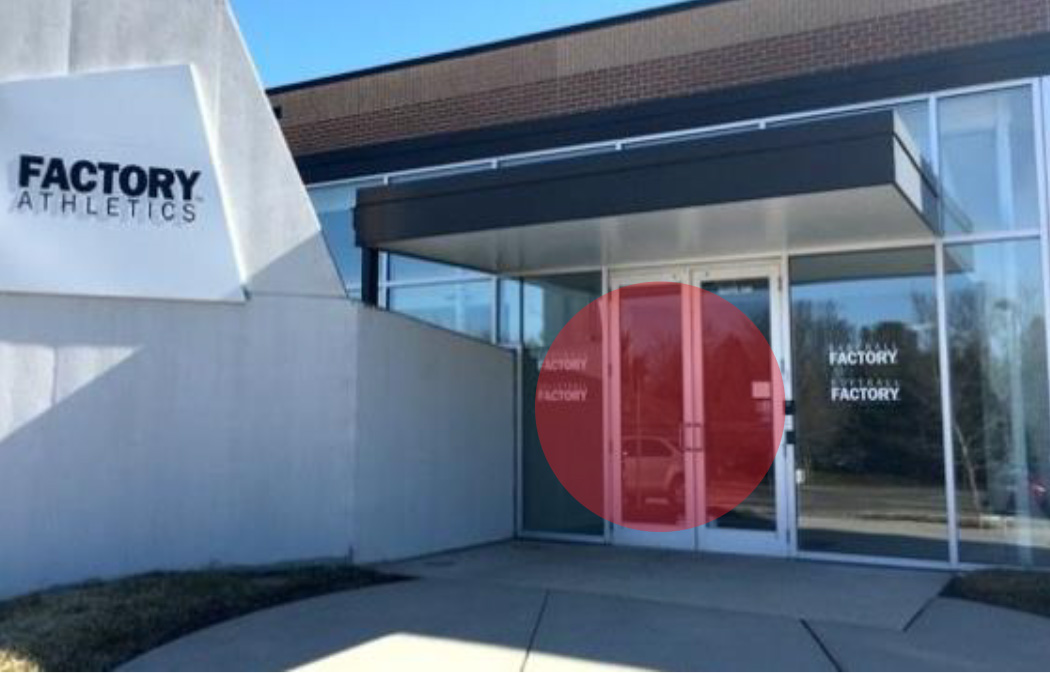

Factory

Entrance of factory

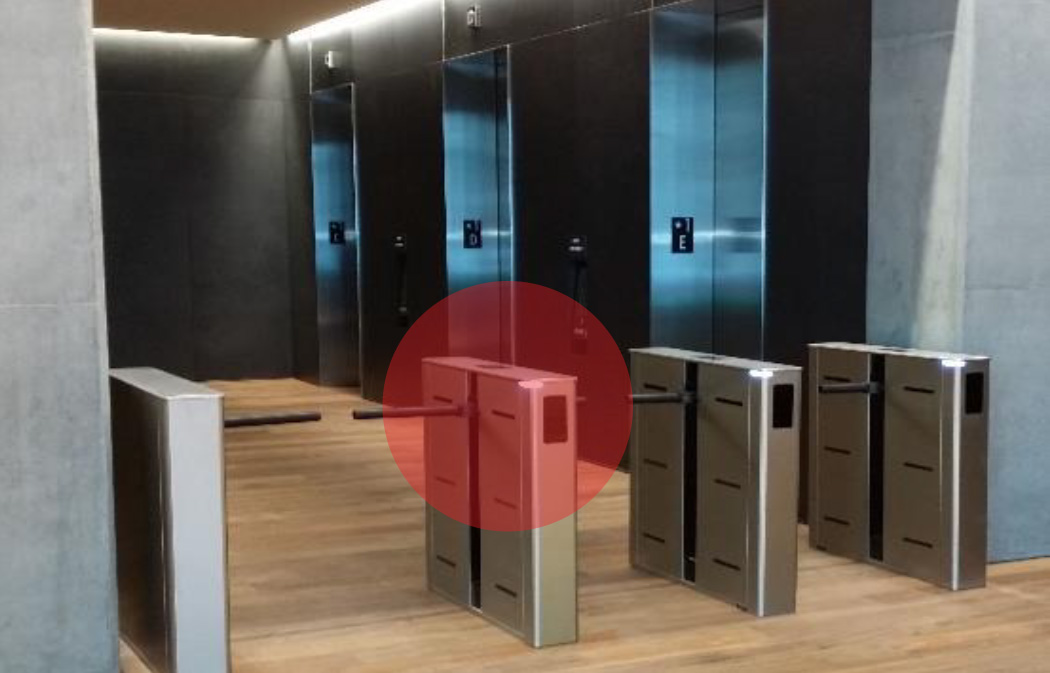

Commercial Building

Elevator hall of parking lot

Entrance of library

Entrance of dormitory

Entrance of factory

Entrance of workshop

Elevator hall of parking lot

Main entrance of office building

Product List

DS-2TD2636B-15/P & DS-2TD2637B-10/P

  • Thermal: 384 × 288, lens: 15 mm/10mm
  • Optical: 2688 × 1520, lens: 6mm/4mm
  • Accuracy: ±0.5℃ (±0.3℃ with blackbody)
  • Measurement range: 30-45℃
  • Working temperature: 10-35℃
  • AI detection, false alarms reduction
  • Simultaneous temperature screening for multiple persons (Up to 30 persons)

DS-2TD2617B-3/6PA(B)

  • Thermal: 160 × 120
  • Lens: 3 mm / 6 mm
  • Optical: 2688 × 1520
  • Optical lens: 4 mm / 8 mm
  • Accuracy: ±0.5℃ (±0.3℃ with blackbody)
  • Measurement range: 30-45℃
  • Supports audio alarms

DS-2TD1217B-3/6PA(B)

  • Thermal: 160 × 120
  • Lens: 3 mm / 6 mm
  • Optical: 2688 × 1520
  • Optical lens: 4 mm / 8 mm
  • Video mode: Bi spectrum image fusion
  • Accuracy: ±0.5℃ (±0.3℃ with blackbody)
  • Measurement range: 30-45℃
  • Supports audio alarms

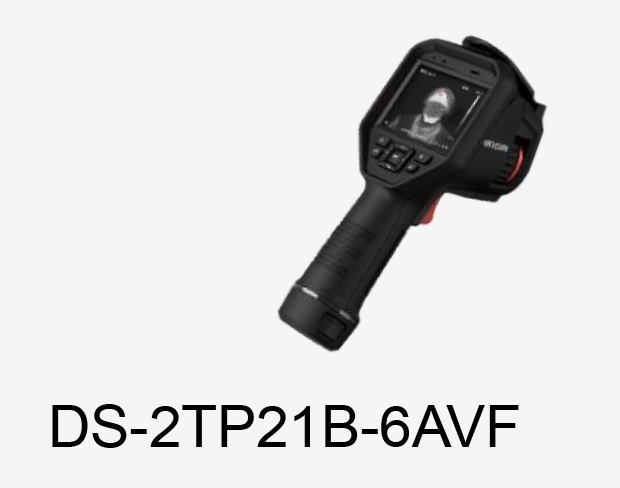

DS-2TP21B-6AVFW

  • Thermal: 160 × 120
  • Optical resolution: 640 × 480 ;
  • Measurement range: 30-45℃
  • Touch screen
  • Accuracy: ±0.5℃ (±0.3℃ with blackbody)
  • Bi spectrum image fusion
  • Supports Wi Fi
  • Supports audio alarms
  • Automatic screenshots & uploading

Blackbody Calibrator

  • Temperature resolution: 0.1℃
  • Accuracy: ±0.1℃
  • Temperature stability: ±0.1℃/h
  • Effective emissivity: 0.97±0.02
  • Operating temperature: 0-30℃

DS-K5671 ZU+DS 2TD2617B 3/6PA(B) DS-K3B601 L/Mpg Dp65 or DS K3B601 M/Mpg InTtNDp65 or DS K3B601 R/MpgTtN Dp65

  • Face recognition & skin surface temperature measurement
  • Non contact fast skin temperature measurement (face detection)
  • All in one, f ast to deploy
  • Voice reminder to broadcast real time alarms
  • Face capacity: 20,000
  • Passing speed: u p to 60 persons/min
  • Measurement range: 30-45℃
  • Accuracy: ±0.5℃

NP-SG318LT F

  • 18 independent detection zones
  • LCD screen
  • Thermal imaging resolution 160*120
  • Temperature measurement accuracy ±0.5℃
  • Temperature measurement range 30-45℃
  • Video mode: Bi spectrum image fusion
  • In accordance with the international safety standard, friendly to pregnant woman, people with cardiac pacemaker, etc.
